Software
Visualization with animations
 PCX pictures as background
Digital signal as picture change or text
change In-/Output of analog values Text lists Pointing instruments Analog values as bar graphs And more Select your language
Own fonts available (e.g. Russian, Chinese
possible) Recipes Recipe administration Recipe storage on flash card LogIn-Level Freely shapable user level
Graph recorder
Different
graph recorder with 4 pens per recorder definably Zoom-function
Data storage
In
ASCII files Charge
storage
WEB server
Visualization
via internet CoDeSys
- IEC 61131-3
Programming
system under Windows
Programming
languages:
Processing
text Contact
plan Function-module
language (independ graphic editor) Query
list (AWL)
Comfortable
programming
Syntax
Colouring Multilayer
Undo/Redo Context
sensitive input assistance Context
menus are available in all editors 32
bit Windows look and feel Zoom
of the graphical editors Integrated
visualisation Organisation
of libraries to manage and administrate user-defined
libraries.
CoDeSys
- IEC 61131-3
Programming
system under windows
Call up
C functions
Structured
control configuration Standart
field bus - configurators CAN-Open Profibus Extensive
online functionality Complete
offline - simulation OPC
server Gateway
to access the control with other applications Network
functionality for data exchange Unit

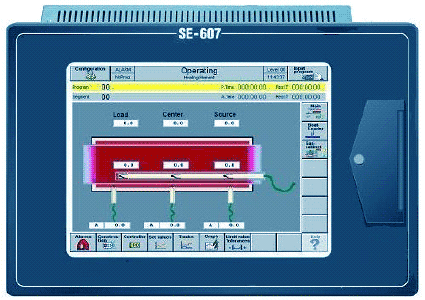

overview By
pushing the "Operation button" the
unit overview will be activated. A
schematic picture or a photo of the unit(s)
is represented in the overview. Above you will
find the current program, the current segment
and as well as the program and remaining time. |
