In
order to make the calibration activity easy
the PM200 System can be specified with an internal
single or twin pressure transducers up to 20
bar and, as an option, with a built-in hand
pressure pump, a volume adjuster for fine control,
a ventilation valve for pressure release and
a pressure port. As it is important that the
maximum pressure for the device under test is
not exceeded, a safety LIMITS function may be
selected to automatically block the pumping
action at the desired set pressure. Two overpressure
valve are used to protect the internal sensors
(active also with instrument switched off).
An external pressure transducer can be connected
for pressure up to 700 bar. The case made in
aluminium, has the front panel extremely rugged
and designed to work with the internal pressure/vacuum
hand-pump.
Pressure
accuracy : ±0.05% of rdg.

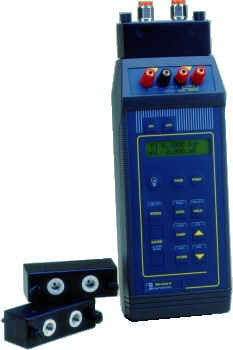

Intelligent
Pressure Module for gauge, differential and
absolute pressure measurement and generation
combined with a high accuracy two-channel multifunction
MicroCal 200 calibrator.
Simultaneous
display of pressure and electrical signal values
with 24 Vdc loop power supply (active and passive
loop).
Pressure
range from –0.8 bar to 20 bar with internal
sensors and up to 700 bar with external sensor.
Internal
pressure/vacuum generation with optional built-in
hand pump, volume adjuster and vent valve for
pressure Trx calibration.
CalpMan
Software to document test and calibration activity.
Data
logger with memory extension (PCMCIA card) for
more than 300000 data record.
Graphic
LCD display with trend recording capability.
Pressure
Trx test with direct reading of % error.
|
Pressure
