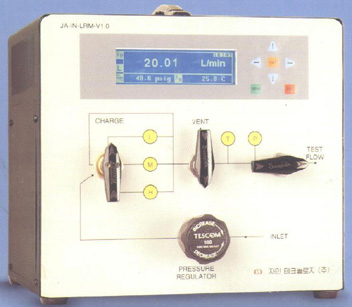

Leak Rate Monitor for Nuclear Power Plants

Specifications

Leakage Flow Rate Range
by MFM Section

Low

2~20cc/min

Medium

20~200cc/min

High

200~2000cc/min

Very High

2000~20000cc./min

Technicals

Accuracy

± 1.0% F.S.

Repeatability

± 0.1

Sensitivity

± 0.05

Resolution

 ± 0.05%

Features

  • High and low range monitoring capabilities are integrated into this powerful instrument
  • Compact and light-weight design
  • Enhanced accuracy through a 2-dimensional calibration equation input of temperature, pressure and flow data monitored
  • Extended life by the use of a filter(2 nanometer)
  • Remote control by PC via RS232C
  • Pressure, temperature and flow units are selectable by user
  • Enhanced temperature and pressure sensors
  • LCD display
