 LVCN-110
Single Sensor Level Controller
|
|
Mounts
Directly on Sensor or Track System
Rugged
NEMA-4X Enclosure
Swivels
on Base for Easy Conduit Alignment
Adjustable
Time Delay Relay
Excellent
for High or Low Level Alarm
Controls
Pumps, Valves and Alarms
LED Displays
Switch, Sensor and Relay Status
120 or
240 Vac
|
|
|
LVCN-110
controller offers features normally found in much larger
controllers. The adjustable time delay relay, invert
switch, and LED status enunciators all maximize the
flexibility of this powerful controller. High or low
level alarm systems can easily be configured with this
120-240 Vac controller. The controller can be mounted
on a sensor or OMEGA track system, and is made of reinforced
polypropylene. The controller swivels on its base for
easy conduit alignment.
|
LVCN-120
Three Sensor Level Controller
|
|
Automatic
Fill or Empty With Additional High or Low Alarm
Selectable
Normally Open or Normally Closed Relay States
LED Lights
Provide User with Sensor, Power and Relay Output Status
Two 10
Amp SPDT Relay Outputs
Installs
on EN 50 022 Standard DIN Rail
Time Delay
Dampens Relay Chatter
Selectable
Latch On or Latch Off Relay Configuration
Controls
Pumps, Valves and Alarms
|
|
|
The
LVCN-120 three sensor controller provides an automatic
fill or empty capability with an additional high or
low alarm. This controller has two 10 amp SPDT relays
along with selectable normally open or normally closed
states. LED enunciator lights provide the user with
sensor, power and relay output status. Relay chatter
can also be eliminated with a 0 to 60 second time delay
adjustment. The LVCN-120 has a selectable latch on or
latch off relay configuration. The controller is conveniently
installed on an EN 50 022 standard DIN rail or panel
mount.
|
LVCN-130
Dual Sensor Level Controller
|
|
Latched
10 Amp SPDT Relay
Controls
Pumps, Valves, and Actuators
Selectable
Latch On or Off Relay
Designed
for Panel Installation on EN 50 022 Standard 35 mm DIN
Rail
Automatic
Tank Fill or Empty Operation
Selectable
Normally Open or Normally Closed Relay States
0 to 60
Second Time Delay Dampens Relay Chatter
|
|
|
The
LVCN-130 dual sensor controller accepts two sensor inputs
for automatic filling and emptying operations. The latched
10 amp relay provides the control interface with pumps
and valves. The controller has a time delay feature
dampening out relay chatter. Other features include
selectable normally open or normally closed relay states
and latch on or off relay conditions. The controller
is designed for installation on EN 50 022 standard 35
mm DIN Rail or it can be panel mounted.
|
LVCN-140
Single Sensor Level Controller
|
|
Excellent
for High or Low Alarm Conditions and Leak Detection
Controls
Pumps, Valves, and Actuators
LED Display
Provides User with Sensor Power and Relay Status
10 Amp
SPDT Relay
Installs
on EN 50 022 35 mm DIN Rail or Panel Mount
0 to 60
Sec Time Delay Dampens Relay Chatter
Selectable
Normally Open or Normally Closed Relay States
|
|
|
The
LVCN-140 single sensor controller provides a high or
low sensor alarm function with a single sensor input.
With a range of dampening adjustments, this controller
can compensate for relay chatter. It conveniently mounts
to a standard EN50 022 DIN rail and utilizes a 10 amp
relay. All functions are fully enunciated with LED lights.
Selectable relay state of normally open or normally
closed are another feature.
|
LVCN-141,LVCN-131
Flow Switch Remote Controller
|
|
Remote
Relay Controller Mounts on 35 mm DIN Rail or Panel Installation
Fail-Safe
Relay for Actuation of Pumps, Valves or Alarms
Offered
in One and Two Relay Configurations
LED Indicators
for Sensor, Relay and Power Status
0-60 Second
Time Delay Dampens Out Relay Chatter
Invert
Switch Provides Simple NO or NC Relay Operation
|
|
|
The
LVCN-141 flow switch controller is commonly used as
a low flow shut off for pumps or process protection
with a single switch input. The LVCN-131 flow switch
controller is commonly used as a dual low flow shut
off for pumps or process protection with two independent
switch inputs. Select the N-Channel FST-200/320 series
flow switches only for use with these remote relay controllers.
|
LVCN-161-AC
Small Tank Ultrasonic Level Controller for 0.3 to
6 foot depth
|
|
Accurate
and reliable level control from 0.3 to 6 feet (9 cm
to 1.8 m)
Low-cost
solution for OEM and process applications
Compact
size and 3/4” transducer for small tanks
Two independent
10A SPDT relays for full system controls
PP enclosure
rated NEMA 4X with PVDF transducer
Fail-safe
intelligence provides maximum process safety

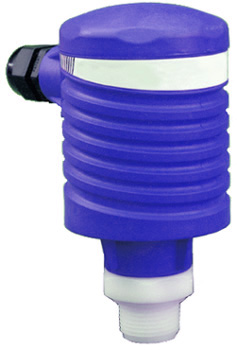

The
LVCN-160 Series, small tank ultrasonic level controller
is mounted through the top wall of the tank and provides
non-contact control up to 1.8m (6'). With non-contact
technology, the transmitter is an excellent choice for
applications with dirty, coating, corrosive type liquids.
The compact design is the perfect size for small tank
applications.
|
|
|
A
high frequency ultrasonic sound wave is pulsed 3 times
per second from the base of the transducer. The sound
wave reflects against the process medium below and returns
to the transducer. The microprocessor based electronics
measure the time of flight between the sound generation
and receipt, and translates this figure into the distance
between the transmitter and process medium below.
|
LVCN-20
Dual Sensor Controller
|
|
Mounts
Directly on Sensor or Track System
Two Sensor
Input for Latching Capability
Control
Automatic Fill or Empty Operations
Invert
Switch Reverses Process Logic in Response to Sensors
Controls
Pumps, Actuators and Valves
LED Displays
Switch, Sensor and Relay Status
Latch
Switch Adds Process Flexibility
Adjustable
Time Delay
|
|
|
The
LVCN-20 dual sensor controller is ideal for automatic
filling or emptying operations. The controller conveniently
mounts to a single sensor or to the sensor track system.
This single channel controller offers a latching, automatic
fill or empty operation between two sensor inputs. An
adjustable time delay feature from 0 to 60 secs. before
the relay responds assists in pump and valve protection.
The invert and latch switch also expand the flexibility
of the controller.
|
LVCN-21
Non-Contact Ultrasonic Level Controller for 0.5
to 12 feet applications
|
|
Accurate
and reliable level control from 0.5 (.15) to 12 feet
(3.7 meters)
Low-cost
solution for OEM and process applications
Compact
size and 2" transducer for small tanks
Two independent
10A SPDT relays for full system controls
PP enclosure
rated NEMA 4X with PVDF transducer
Fail-safe
intelligence provides maximum process safety
|
|
|

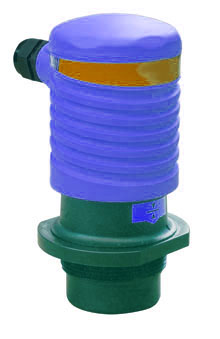

The
LVCN-21 Series, ultrasonic level controller is mounted
through the top wall of the tank and provides non-contact
control up to 12' (3.7 m). With non-contact technology,
the controller is an excellent choice for applications
with dirty, coating, corrosive type liquids. The compact
design is the perfect size for all tank applications.
A high frequency ultrasonic sound wave is pulsed three
times per second from the base of the transducer. The
sound wave reflects against the process medium below
and returns to the transducer. The microprocessor based
electronics measure the time of flight between the sound
generation and receipt, and translates this figure into
the distance between the controller and process medium
below.
|
LVCN-300
series PROCESS LEVEL CONTROLLER WITH MULTICOLORED
BAR GRAPH
|
|
NEMA-4
and Optional NEMA-4 Fiberglass Enclosure
Multi-Color
Bar Graph Process for Zooming in on Critical Range
Large
Numeric Display
4-20 mA
Process Input
Easy Front
Panel Programming
|
|
|
The
LVCN-300 series is designed from an operator’s point
of view, making any process and alarm points visible
on the multi-colored display graph. They get everything
they need at a glance! The LVCN-300 series provides
reliability with very flexible design options and a
friendly face to tell you exactly what is going on inside
your tank no matter where it is located. Everyone can
easily see it from a distance or while walking the plant
floor. It’s this simple to understand--if the green
vertical bar (level) is between the orange and yellow
line everything’s just fine. If it’s above or below
the red marks, something is wrong. That is all there
is to it. The LVCN-300 series accepts all types of 4-20
mA sensors, such as pressure, ultrasonic, float type
liquid level transmitters and capacitive transmitters.
The sensor input is isolated and loop powered up to
24 Vdc, allowing data gathering devices to easily interface.
Two models are available, the LVCN-301 or LVCN-302.
The LVCN-301 is for Make Up applications and the LVCN-302
is for sump applications. A typical Make Up application
is when the liquid in a tank is “lost” because it is
being used in a manufacturing process or lost by evaporation
and has to periodically be refilled or “made up”. To
accomplish a Make Up operation the LVCN-301 controller
uses a differential relay that is activated by a FALLING
level in the tank. The same relay is going to turn the
pump or valve ON and OFF. First you need to program
the Make Up ON level where you want to begin refilling
the tank with liquid. When the level FALLS or DECREASES
to this point, the controller will CLOSE or activate
the relay and turn ON a pump or valve and begin refilling
the tank. The LVCN-301 controller has internally “latched”
the relay closed and will continue holding it closed
until the Make Up OFF level that was programmed is reached
and the tank stops filling. A typical Sump application
is when the liquid in a tank is being collected and
has to periodically be transferred or pumped out to
prevent an overflow. A basement with a sump pump is
doing the same type of operation. To accomplish this
Sump Operation the LVCN-302 controller uses a differential
relay that is activated by a RISING level in the tank.
The same relay is going to turn the pump or valve ON
and OFF. First you need to program the SUMP ON level
where you want to begin draining the liquid in the tank.
When the level RISES or INCREASES to this level the
controller will CLOSE or activate the relay and turn
on a pump or valve and begin draining the tank. The
LVCN-302 controller has internally “latched” the relay
closed and will continue holding it closed until the
Sump OFF level you programmed is reached and the tank
stops draining.
|
LVCN-51
Proportional Level Controller
|
|
Universal
Proportional Controller with Adjustable Setpoints
Numerical
Display and Bar Graph Assists in Programming
Excellent
Choice for Use with Continuous Ultrasonic and RF Capacitance
Isolated
4 to 20 mA Proportional Output Reversible
Time Delay
Feature Dampens Alarm Chatter
Auto Fill
or Empty Capability with Independent Alarm
Scaleable
in Engineering Units
|
|
|
The
LVCN-50 Series proportional controller is both a proportional
and an on/off controller. It can easily program up to
three continuous process setpoints while viewing a numerical
display and bar graph. The controller can be applied
universally and is an excellent choice for use with
the LVU-300 Series continuous ultrasonic, and LVCN-70
series continuous RF capacitance transmitters. It also
has a scalable, isolated 4 to 20 mA proportional output
to assist in other control functions.
|
LVCN-91
COMPACT SINGLE SENSOR CONTROLLER (dc)
|
|
Mounts
Directly on Sensor or Track System
Adjustable
Time Delay Relay
LED Displays
Switch, Sensor and Relay Status
Excellent
for High or Low Level Alarm
Controls
Pumps, Valves and Alarms
14 to
36 Vdc
Swivels
on Base for Easy Conduit Alignment
Rugged
NEMA-4X (IP65) Enclosure
|
|
|
Compact
dc single sensor offers features normally found in much
larger controllers. The reduced housing size controller
contains an adjustable time delay relay, invert switch,
and LED status alerts. High or low level alarm systems
can easily be configured with this 14-36 Vdc controller.
The controller can be mounted on a sensor or the track
system, and is made of reinforced polypropylene.
|

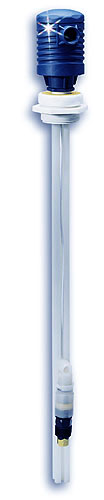

LVM
Series Level Track Mounting Systems
|
|
Adjustable
In-Tank Mounting System
Mounts
Up to Four Sensors (sold separately)
Mixer
Compatible With Rotational Velocities of Up to 1.5 fps
Optional
Side Mount Bracket Conveniently Mounts the Track to
Tank Wall
Permits
Different Sensing Technologies for Additional Safety
Easy to
Adjust with Changing Processes
Integral
Controller Options Available
Level
track system is an in-tank (unpressurized tanks only)
mounting system that enables the user to install and
adjust up to four sensors (sold separately) to any depth
along the entire length of the track. The track is made
entirely of polypropylene and is available in 0.6, 1.2
or 1.8 m (2, 4, 6, 8 or 10') lengths. Lengths of up
to 10 ft. can be special ordered. Select the level track
system for mixing applications with radial velocities
up to 1.5 fps (feet per second). The track mounts vertically
through the top of the tank with a standard 2"
NPT tank adaptor. Each track kit includes a 2"
NPT fitting assembly, a two, four or six foot track
section, and one sensor car. Additional sensor cars
can be purchased separately. The enclosure on top of
the track that is shown in the photo is also purchased
separately (LVCN-11 or LVCV-12).
|
|

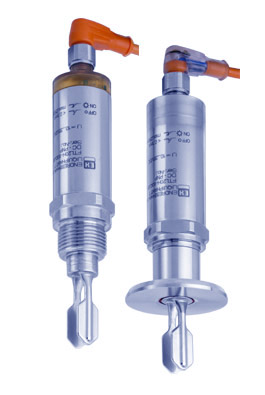

Liquiphant
T FTL 20H
|
|
Technical
features of limit switch FTL 20H:
E.g. Stainless
steel housing with round connector and degree of protection
IP69K (Steam jet proof)
On-site
function control using external LED display
Large
selection of process connections for hassle-free installation
CIP and
SIP cleanability ensured
EHEDG
certification
|
|
|
The
Liquiphant T FTL20H is a level limit switch for liquids
in storage tanks, agitators and pipes which have to
meet particularly high hygiene standards internally
and externally. By using a gap free housing design,
providing a wide range of process connections focussed
for sanitary applications, having the right surface
roughness of RA1,5 and are able to work in process temperatures
up to 150° the FTL20H is targeting the requirements
of food applications. In addition the limit switch sensor
can be used particular in areas where other measurement
methods would probably fail: e.g. in the event of viscosity,
build-up, turbulences, flows, air bubbles, rush temperature
change during cleaning.
|

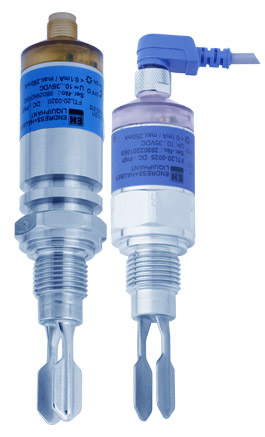

Liquiphant
T FTL 20
|
|
Technical
features of limit switch FTL 20:
Smallest
tuning fork sensor
½",
¾" and 1" process connections
Processtemperatures
up to 150°C
Stainless
steel housing (316L)
2-wire
AC, DC PNP or AS-i Bus Electronic
TÜV
Approval for leackage and overspill protection
|
|
|
The
Liquiphant FTL 20 is a level limit switch for all kinds
of liquids and is used in tanks, containers and pipelines.
It is used in cleaning and filtering systems and coolant
and lubricant tanks as an overspill protection or as
a pump protector. The FTL 20 is ideal for applications
which previously used float switches and conductive,
capacitive and optical sensors. It also works in applications
which are unsuitable for these measuring methods due
to conductivity, build-ups, turbulence, flows or air
bubbles. The FTL 20 is not suitable for hazardous areas
and areas where the medium temperature is above 150°C.
For hygienic areas the use of FTL 20 H, sanitary version,
is recommended.
|
