 Ultrasonic Flow Meter (Transit-Time, Clamp-on/Wetted Type)
MODELS: MU Series
(Portable/Wall Mount/Panel Mount/Hand-held Configurations)
|
Handheld
|
Model Description

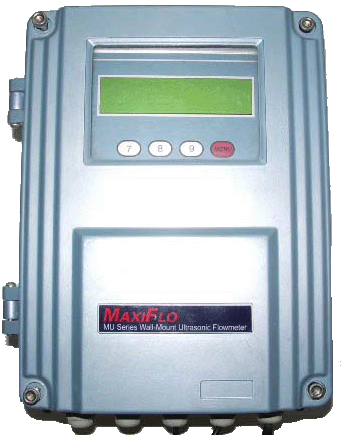

- MU-WA: Wall-Mount Type

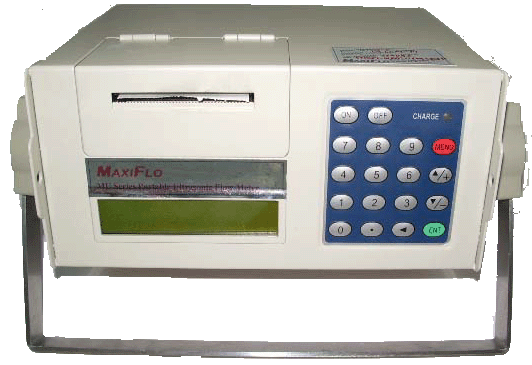

- MU-PO: Portable Type

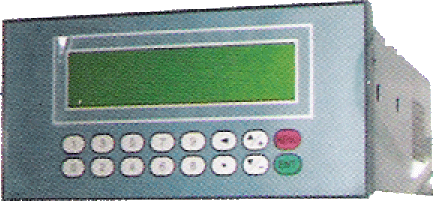

- MU-PA: Panel-Mount Type

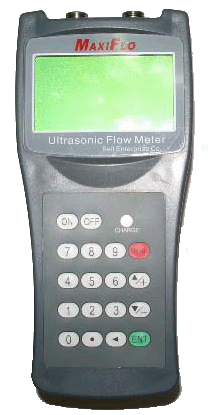

- MU-HA: Hand-Held Type
|
|
Wall-Mount
Portable
Panel-Mount
|
Features
- No down time for installation or maintenance(Clamp-on)
- No pressure loss
- High accuracy and reliability and low price
- Simple and easy installation
- The most advanced direct time measuring method with the resolution of 0.2ns.
- Intelligent logic allows for high linearity
- Real-time printing(Portable only)
- Various configurations available(Portable, wall-mount, panel-mount and hand-held types)
- Excellent track records both in local and overseas markets
|
MaxiFloTM ultrasonic flow meter series MU adopts a state-of-the-art, single-board technology featuring high precision, high reliability, high performance, low price, etc. that make it the ultrasonic flow meter of choice by many customers from all over the world.
It's main features are:
- The sensors being clamp-on type, there's no pressure loss. The sensors are easily mounted on the surface of the pipe without interrupting the flow for installation or maintenance.
- Advanced intelligent display, computation and printing(data loggin) to suit user's diversified requirements. The flow is displayed in all pertinent engineering units. It runs out of regular AC power(110V/220V), built-in batter or DC power.
- Using the most advanced direct-time-measuring method, the meter offers a signal resolution of 0.2ns. In addition, advanced data processing functions ensure MaxiFloTM series MU of high linearity.
- Signal outputs including current signal, frequency signal, serial data, switch outputs(1 OCT and 1 relay output). All the outputs displayed on the unit can be transmitted to a PC via RS-232C for further processing or storage.
All the meters are calibrated accurately before shipment and shipped with test and calibration report to ensure the accuracy of the meter.
As standard, the meters are delivered with 1 year of warranty.
INSTALLATION GUIDE
10D upstream and 5D downstream straight pipe sections are required to ensure accuracy. If there's a pump in the upstream, the upstream straight pipe run should be as large as 30D
SPECIFICATIONS
LIQUIDS MEASURED Water and other clean liquids with the suspended solid density lower than 10,000 ppm(mg/l). Liquid temperature should be between -20 and 120°C and should not contain ice.
PIPES MEASURED Steel, stainless steel, cast iron, plastic, etc. The lining thickness should not exceed 5mm.
FLOW VELOCITY RANGE -16m/s ~ +16m/s
PIPE SIZE RANGE(INNER DIAMETER) 15mm ~ 6,000mm
ACCURACY ±1% of Reading at >0.2 m/s
REPEATABILITY ±0.2 ~ 0.5% at 0.3 ~ 16m/s
LINEARITY ±0.5%
OUTPUT 4~20mA (Accuracy 0.1%), Frequency (12~9,999Hz), Relay, RS-232
POWER 8~36VDC, 300mA / 110VAC ~ 250VAC
PRINTER OUPUT via RS-232C all the parameters are selectable(for Portable Type only)
OPERATING CONDITION
Flow Computer - Temperature: -20 ~ 40°C Humidity: 85% RH maximum
Transducers - Temperature : -20 ~ 120°C Humidity: 98% RH maximum(With IP-68 option, it can operate immersed in water at 2m depth max)
|
